Diblob Visualizer

Interactive dependency injection graph visualization for diblob.

Visualize your dependency injection container as an interactive graph with nodes representing blobs and edges showing dependencies between them.

Features

• 📊 Interactive Graph Visualization - Pan, zoom, and drag nodes
• 🔄 Real-time Updates - Watch the graph update as you modify your container
• 🎯 Lifecycle Indicators - Visual distinction between Singleton and Transient services
• 📈 Statistics Dashboard - See counts of nodes, edges, and lifecycle types
• 🎨 Clean UI - Modern, responsive design with clear visual hierarchy
• 🔌 Embeddable - Easy to integrate into any Svelte application
• 🏷️ Metadata Support - Display custom names, descriptions, and metadata for blobs
• 🌐 Remote Visualization - Connect to containers running in different processes

Screenshots

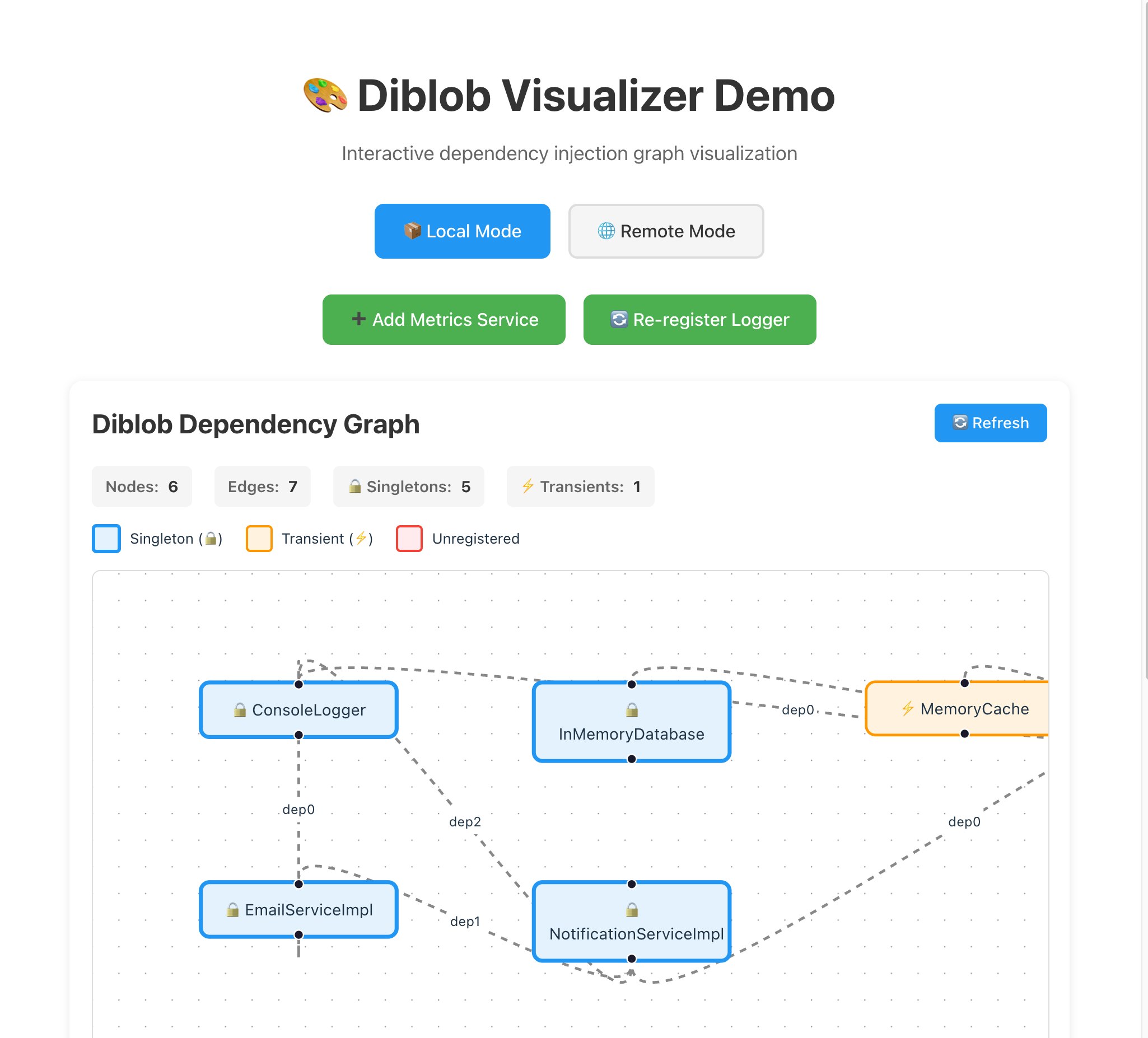

Dependency Graph Visualization

The visualizer displays your dependency injection container as an interactive graph, showing:

• Blob nodes with their metadata (name, description)
• Dependencies between services
• Lifecycle indicators (Singleton/Transient)
• Real-time statistics

Metadata Display

Blobs with metadata show rich information:

• Custom names instead of generic blob IDs
• Descriptions for better understanding
• Any custom metadata properties you define

Installation

npm install @speajus/diblob-visualizer @speajus/diblob

Quick Start

Standalone Demo

npm install
npm run dev

Open http://localhost:5173 to see the visualizer in action.

Embedding in Your Application

<script lang="ts">
  import { DiblobVisualizer } from '@speajus/diblob-visualizer';
  import { createContainer, createBlob } from '@speajus/diblob';

  const container = createContainer();
  const logger = createBlob<Logger>();
  container.register(logger, ConsoleLogger);
</script>

<DiblobVisualizer {container} />

Documentation

• Getting Started - Installation and basic usage
• Embedding Guide - How to embed in your application
• Remote Visualization - Connect to remote containers
• Server Setup - Set up a visualization server
• Examples - Sample container setups
• API Reference - Component props and options

Component Props

Prop	Type	Default	Description
container	Container	required	The diblob container to visualize
autoRefresh	boolean	false	Auto-refresh at intervals
refreshInterval	number	1000	Refresh interval (ms)

Graph Legend

• 🔒 Blue nodes - Singleton services
• ⚡ Orange nodes - Transient services
• Red nodes - Unregistered dependencies
• Arrows - Dependencies between services

Architecture

Built with Svelte 5, Svelte Flow, TypeScript, and Vite.

Development

npm install
npm run dev      # Start dev server
npm run build    # Build library
npm run check    # Type check

License

MIT
